DBB

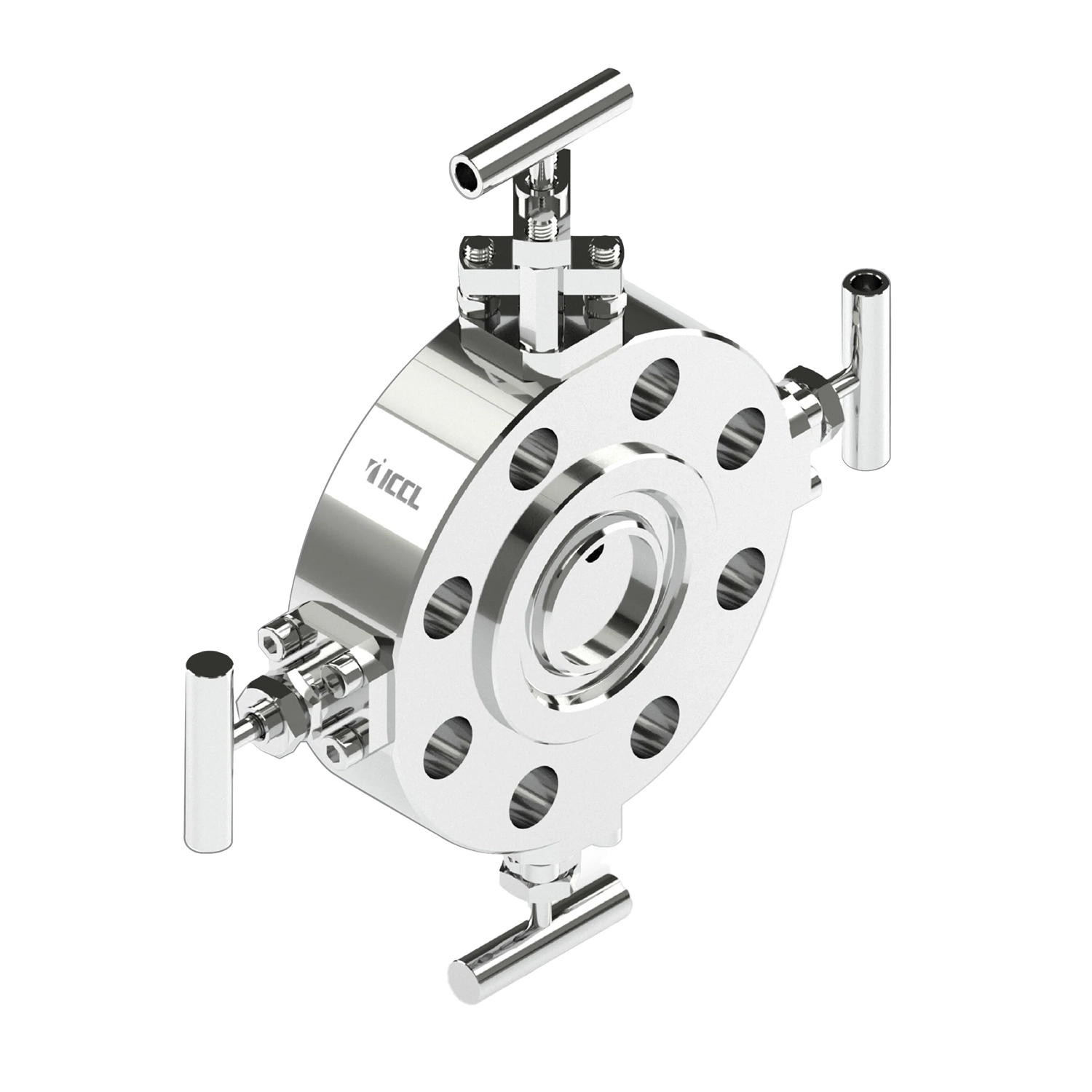

DBB Mono Flange

DBB Valve

FEATURES:

Industrial demand increases with every new development and applications, ICCL

Monoflange valves replace Multivalve assemblies (Primary, Secondary & Vent valves) with single one block flange mounted valve.

Compact design, Minimal potential leak joints, Improves safety.
Cost reduction.
Block valve, Block & Bleed Valve, Double Block & Bleed valve design available
Integral Screwed Bonnet, Bolted Bonnet,
Outside Screw and Yoke (OS & Y) valve construction available.
Compatible with ANSI/ASME flange connections from ½" to 2" with FF, RF & RTJ.
Various outlet connections, Male / Female / Compression available.
Back stop, Anti-blow and non-rotating self-centring Spindle for bubble free Joints.
Working Pressure up to 60000 psi.
100% hydraulic pressure tested.
All Physical, Chemical and traceability certificates available.
Process Mono-flange valve for NACE MRO175/ISO 15156 - Sour gas services are available.
Colour coded dust cap and functional label on each identification on each Needle valve.
PTFE/PEEK/ Graphoil Packing available for various temperature applications.
Available in various materials like SS316, Monel, Duplex (F51), Super Duplex (F53), Inconel, 6MO, Hastalloy body SS316 as standard, optional wetted parts in various exotic materials.
