ICCL is a leading manufacturer of a wide range of instrumentation valves and fittings in Saudi Arabia, featuring state-of-the-art facilities and a global reach.

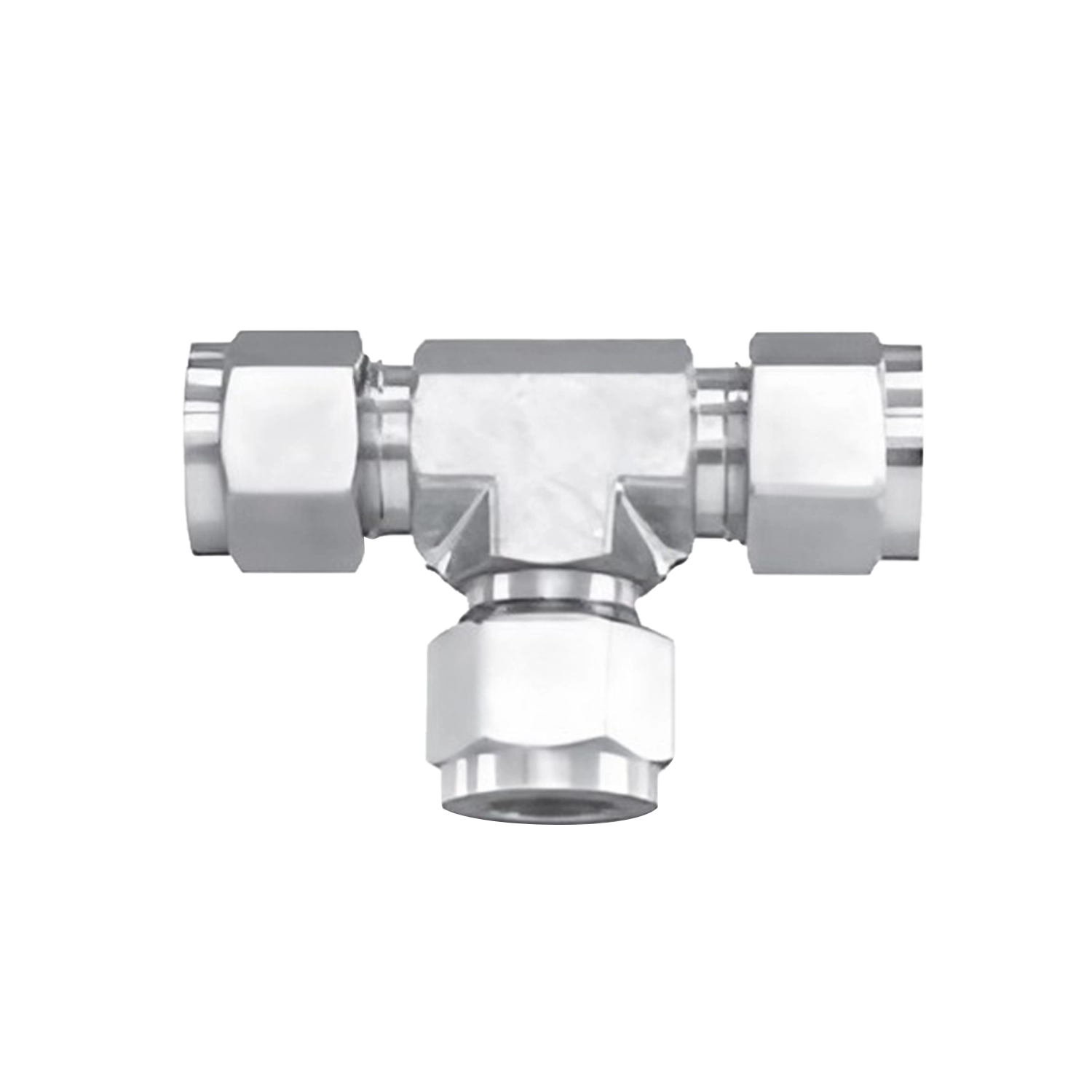

| PART NO. | 'T' TUBE OD | A | C | D | E | F A/F | G A/F | H BODY |
|---|---|---|---|---|---|---|---|---|
| TU2 | 1/8" | 0.88 | 0.60 | 0.50 | 0.09 | 1/2" | 7/16" | 0.62 |
| TU3 | 3/16" | 1.00 | 0.63 | 0.64 | 0.12 | 1/2" | 1/2" | 0.70 |
| TU4 | 1/4" | 1.06 | 0.70 | 0.60 | 0.19 | 9/16" | 9/16" | 0.77 |
| TU5 | 5/16" | 1.17 | 0.73 | 0.64 | 0.25 | 9/16" | 5/8" | 0.88 |
| TU6 | 3/8" | 1.20 | 0.76 | 0.66 | 0.28 | 5/8" | 11/16" | 0.91 |
| TU8 | 1/2" | 1.42 | 0.86 | 0.90 | 0.41 | 13/16" | 7/8" | 1.02 |
| TU10 | 5/8" | 1.50 | 0.86 | 0.96 | 0.50 | 15/16" | 1" | 1.13 |
| TU12 | 3/4" | 1.57 | 0.86 | 0.96 | 0.62 | 1-1/16" | 1-1/8" | 1.17 |
| TU14 | 7/8" | 1.76 | 0.86 | 1.02 | 0.72 | 1-1/4" | 1-1/4" | 1.36 |
| TU16 | 1" | 1.93 | 1.04 | 1.23 | 0.88 | 1-3/8" | 1-1/2" | 1.45 |
| TUm3 | 3 | 22.3 | 15.3 | 12.7 | 2.4 | 12.7 | 11.0 | 15.70 |
| TUm6 | 6 | 27.0 | 17.7 | 15.3 | 4.8 | 12.7 | 14.0 | 19.60 |
| TUm8 | 8 | 29.7 | 18.6 | 16.2 | 6.3 | 15.0 | 16.0 | 22.20 |
| TUm10 | 10 | 31.5 | 19.5 | 17.5 | 7.9 | 17.0 | 19.0 | 23.90 |
| TUm12 | 12 | 36.0 | 22.0 | 23.0 | 9.5 | 22.0 | 22.0 | 25.90 |
| TUm16 | 16 | 38.0 | 22.0 | 24.6 | 12.7 | 24.0 | 25.4 | 28.70 |
| TUm20 | 20 | 44.6 | 22.0 | 26.1 | 15.9 | 32.0 | 32.0 | 34.50 |
| TUm25 | 25 | 49.0 | 26.5 | 31.2 | 21.8 | 35.0 | 38.0 | 36.80 |
